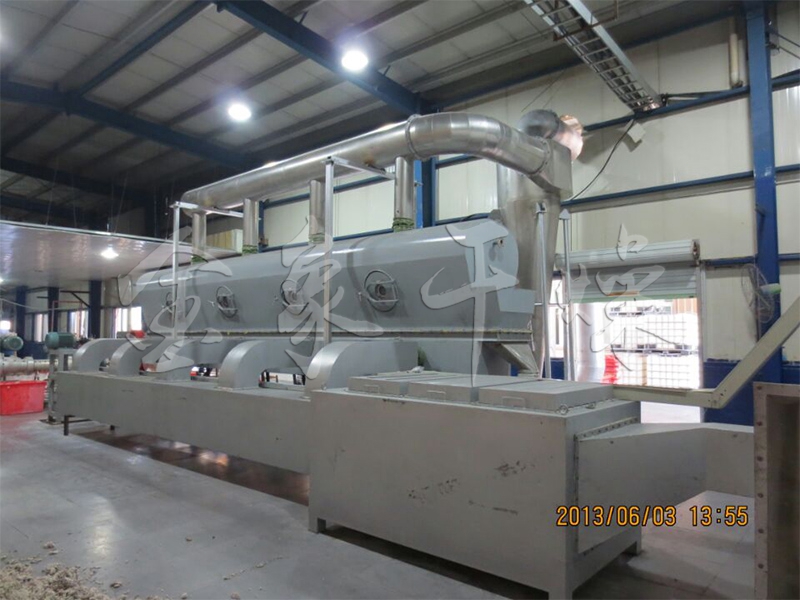

XF Series Horizontal Boiling Dryer
XF Series Horizontal Boiling Dryer
Detailed description
Product description
??Boiling and drying, also known as fluidized bed, it is composed of air filter, heater, boiling bed host, cyclone separator, bag filter, high pressure centrifugal fan, operating table, due to the different nature of the drying materials, supporting dust removal Equipment, can be considered according to need, you can choose the cyclone separator, bag filter, can also choose one of them, in general, the proportion of larger particles such as powder and particle drying only need to choose the cyclone separator, the proportion of lighter Small granular and powdery materials need to be equipped with bag filter, and pneumatic feeding device and belt conveyor are available for selection.
??
The bulk solid material is fed into the fluidized bed dryer by a feeder. The filtered clean air is heated and sent by the blower to the bottom of the fluidized bed and contacted with the solid material through the distribution plate to form a fluid-solid heat-mass exchange. After the material is dried, it is discharged from the discharge port. The exhaust gas is discharged from the top of the fluidized bed and discharged by the cyclone dust collector and the bag filter to recover the solid powder.
??
Steam, electric, hot air furnace can be equipped with (according to user requirements).
Working Principle
??Clean hot air is distributed into the bed through the valve plate. The wet material entering the feeder is boiled by hot air. Due to the extensive contact of hot air with the material, the process of heat and mass transfer is enhanced, so it can be dried in a short time. If the continuous type is adopted, the material enters from one end of the bed and is boiled and dried after tens of seconds to several minutes, and flows out from the other end of the bed automatically. This equipment is generally operated under negative pressure.
Adapt to materials
◎ pharmaceuticals, chemical raw materials, food, food processing, feed drying operations. Such as: raw materials, tablets, granules, traditional Chinese medicine, health food, drink granules, corn germ, feed, plastic resins, citric acid and other powdered materials dry dehumidification. Applicable material particle size is generally 0.1 ~ 6mm, the optimal particle size is 0.5 ~ 3mm.
Installation instructions
◎ The equipment needs to be placed flat, fixed with foot screws, and the components are well sealed.
◎ The fan can be placed outdoors or in a self-contained silencer room. The layout can be adjusted as the case may be.
| Specifications Model Technical Parameters | XF0.25-1 (formerly XF10) | XF0.25-2 (formerly XF20) | XF0.25-3 (formerly XF30) | XF0.25-6 | XF0.3-2 | XF0.3-4 | XF0.3-6 | XF0.3-8 | XF0.3-10 | XF0.4-4 | XF0.4-6 |
| Bed area (m 2 ) | 0.25 | 0.5 | 1.0 | 1.5 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 1.6 | 2.4 |
| Drying capacity (kg h 2 O/h) | 10-15 | 20-25 | 30-45 | 52-75 | -30 | 42-60 | 63-90 | 84-120 | 105-150 | 56-80 | 84 |
| Fan power (kw) | 5.5 | 7.5 | 15 | twenty two | 7.5 | 18.5 | 30 | 37 | 48 | 30 | 37 |
| Inlet temperature ( oC) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Material temperature ( o C) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Host Dimensions Length × Width × Height (m) | 1×0.6 | 2×0.6 | 4×0.6 | 6×0.6 | 2×0.70 | 4×0.7 | 6×0.7 | 8×0.7 | 10×0.7 | 4×1 | 6×1 |
| Footprint (m 2 ) | 18×3.35 | 25×3.35 | 35×3.35 | 40×3.35 | 25×3.4 | 38×3.4 | 45×3.4 | 56×3.4 | 70×3.4 | 18×3.58 | 56×3.58 |
| Specifications Model Technical Parameters | XF0.4-8 | XF0.4-10 | XF0.4-12 | XF0.5-4 (formerly XF50) | XF0.5-6 | XF0.5-8 | XF0.5-10 | XF0.5-12 | XF0.5-14 | XF0.5-16 | XF0.5-18 |
| Bed area (m 2 ) | 3.2 | 4.0 | 4.8 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 |
| Drying capacity (kg h 2 O/h) | 112-160 | 140-200 | 168-240 | 70-100 | 140-200 | 140-200 | 175-250 | 210-300 | 245-350 | 280-400 | 315-450 |
| Fan power (kw) | 44 | 66 | 66 | 30 | 66 | 66 | 90 | 90 | 150 | 150 | 165 |
| Inlet temperature ( o C) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Material temperature ( oC) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Host Dimensions Length × Width × Height (m) | 8×1 | 10×1 | 12×1.2 | 4×1.2 | 8×1.2 | 8×1.2 | 10×1.2 | 12×1.2 | 14×1.2 | 16×1.2 | 18×1.2 |
| Footprint (m 2 ) | 74×3.58 | 82×3.58 | 96×4.1 | 50×4.1 | 70×4.1 | 82×4.1 | 100×4.1 | 140×4.1 | 180×4.1 | 225×4.1 | 268×4.1 |
Note: 1. Feeding methods: 1. Star feeding; 2. Star feeding and pneumatic conveying; 3. Belt conveying; 4. User self-determined.
??
Second, automated production can be achieved. Three. In addition to the above models, users can make special designs. 4. According to different materials, the fan power is also different.
