CT-C Series Hot Air Circulating Oven
CT-C Series Hot Air Circulating Oven
Detailed description
Product introduction:
CT-C series hot air circulation oven is equipped with low noise and high temperature axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which improves the thermal efficiency of the oven from 3-7% of the traditional drying room to the current 35. -45%, high thermal efficiency up to 50%. The successful design of CT-C hot air circulation oven has made China's hot air circulation oven reach the advanced level at home and abroad. It has saved a lot of energy for China and improved the economic benefits of the company. In 1990, the National Pharmaceutical Administration issued an industry standard, the unified model is RXH.
Equipment process:
◎ heating heat source has steam, electricity, far infrared, electric steam for users to choose;
◎ use temperature: steam heating 50 ~ 140 o C, high 150 o C;
◎ electricity, far infrared temperature 50 ~ 350 o C;
◎ equipped with automatic control system and computer control system for users to choose;
◎ common steam pressure 0.02-0.8Mpa (0.2 ~ 8kg / m 2 );
◎ with electric heating, according to type I calculation 15KW, practical 5-8kw /h;
◎Special requirements are stated at the time of ordering;
◎The price of non-standard oven is negotiable;
◎The use temperature is greater than 140 o C or less than 60 o C, which should be specified when ordering;
◎The size of the factory drying and baking tray is uniform. Can be interchanged;
◎ baking tray size: 460 × 640 × 45 (mm).
Performance characteristics:
Most of the hot air circulates in the tank, which has high thermal efficiency and saves energy. The utility model utilizes the forced ventilation function, and the adjustable air distribution plate is arranged in the box, the material is evenly dried, and the heat source can be steam, hot water, electricity and far infrared, and the selection is wide. The whole machine has low noise and balanced operation. Temperature control, easy installation and maintenance. Wide range of applications, can dry a variety of materials, is a general drying equipment.

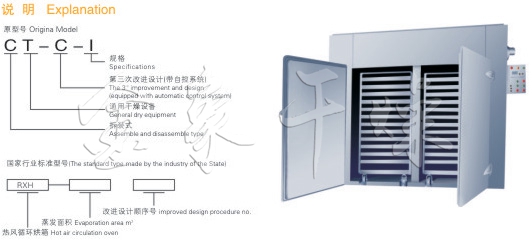

schematic diagram:
Technical Parameters:
| Industry standard model | Model specification | Drying amount per time (kg) | Distribution power (kw) | Consumption of steam (kg/h) | Heat dissipation area (m 2 ) | Air volume (m3/h) | Upper and lower temperature difference ( o C) | With baking tray | Dimensions, face width × depth × height | Supporting drying car | equipment weight |
| RXH-14-B | CT-I | 120 | 1.1 | 20 | 20 | 2800 | ±2 | 48 | 2430×1200×2375 | 2 | 1200 |
| RXH-27-B | CT-II | 240 | 2.2 | 40 | 40 | 5200 | ±2 | 96 | 2430×2200×2433 | 4 | 1500 |
| RXH-41-B | CT-III | 360 | 3 | 60 | 80 | 8000 | ±2 | 144 | 3430×2200×2620 | 6 | 2000 |
| RXH-54-B | CT-IV | 480 | 4 | 80 | 100 | 9800 | ±2 | 192 | 4460×2200×2620 | 8 | 2300 |
| RXH-5-C | CT-CO | 25 | 0.45 | 5 | 5 | 3450 | ±2 | 16 | 1130×1100×1750 | 0 | 800 |
| RXH-7-C | CT-C-IA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | twenty four | 1400×1200×2000 | 1 | 1000 |
| RXH-14-C | CT-C-I | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 | 1500 |
| RXH-27-C | CT-C-II | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 | 1800 |
| RXH-27A-C | CT-C-IIA | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 4460×1200×2290 | 4 | 1800 |
| RXH-41-C | CT-C-III | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3430×2200×2000 | 6 | 2200 |
| RXH-42A-C | CT-C-IIIA | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3200×2000 | 6 | 2200 |
| RXH-54-C | CT-C-IV | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200×2290 | 8 | 2800 |
| RXH-25-A | High-efficiency high-temperature far-infrared sterilization oven power matching according to temperature requirements | 1200×1000×1600 | 1 | 1200 | |||||||
Adaptable materials:
Suitable for heat curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, raw drugs, Chinese herbal medicine pieces, extracts, powders, granules, granules, water pills, packaging bottles, pigment dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking varnish and so on.
