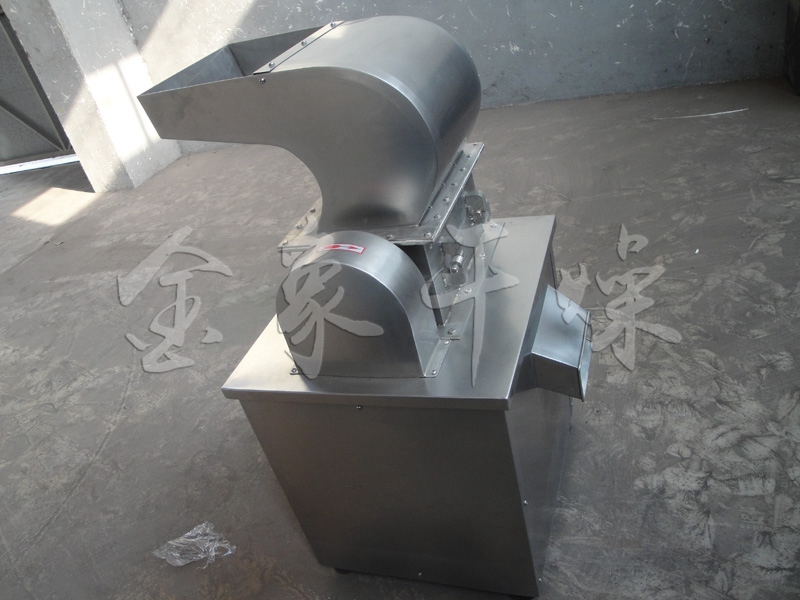

CSJ coarse crusher
CSJ coarse crusher
Detailed description
Product use
The machine is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries. Processing of hard and hard-to-grind materials, including smashing of plastics, copper wire, Chinese herbs, rubber, etc., can also be used as ancillary equipment for pre-processing of fine crushers and ultrafine crushers.
Working principle The
material is fed into the crushing chamber by the feed hopper. After being impacted by the blade and the knife seat, the rotating knife and the fixed knife are simultaneously smashed and crushed. Due to the effect of rotating centrifugal force, the material flows out of the outlet automatically.
Technical Parameters
| model | CSJ-250 | CSJ-500 |
| Feed particle size | ≤100 | ≤100 |
| Discharge particles | 0.5-20 | 0.5-20 |
| Spindle speed | 940 | 1,000 |
| power | 4 | 11 |
| Yield | 50-300 | 80-800 |
| Dimensions | 860×650×1020 | 1120×1060×1050 |
