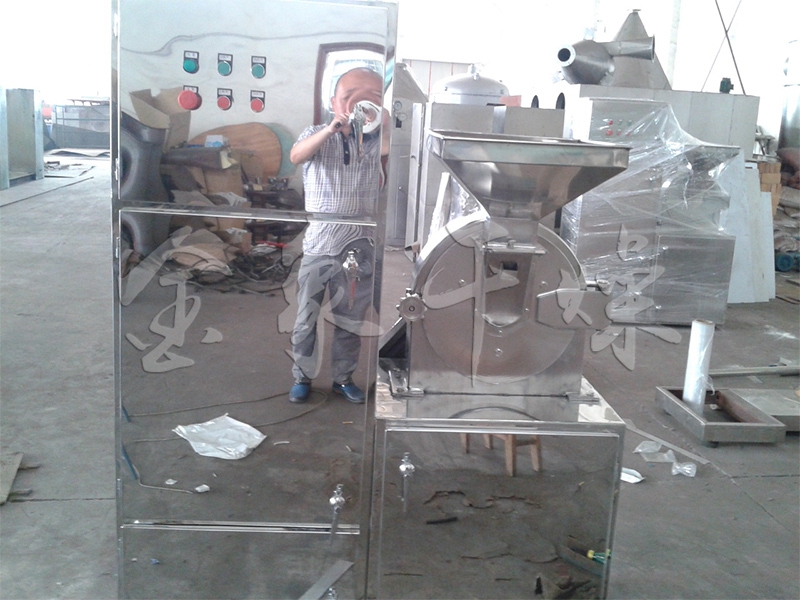

30B series universal crusher
30B series universal crusher
Summary：Structure principle and function: The pulverizing unit is composed of a pulverizer, an ESC material collection box and an ESC vacuum cleaner.Solve the dust in the material during the crushing process. The working principle of the machine is that the material enters the crushing chamber and is crushed under the action of impact, shearing, friction and mutual impact between the movable toothed disc ···
Detailed description
Structure principle and function :
The pulverizing unit is composed of a pulverizer, an ESC material collection box and an ESC vacuum cleaner. Solve the dust in the material during the crushing process.
The working principle of the machine is that the material enters the crushing chamber and is crushed under the action of impact, shearing, friction and mutual impact between the movable toothed disc and the fixed toothed disc rotating at high speed, after screening through the screen. Become the desired powder.
The pulverizing unit is composed of a pulverizer, an ESC material collection box and an ESC vacuum cleaner. Solve the dust in the material during the crushing process.
The working principle of the machine is that the material enters the crushing chamber and is crushed under the action of impact, shearing, friction and mutual impact between the movable toothed disc and the fixed toothed disc rotating at high speed, after screening through the screen. Become the desired powder.
The pulverizer, material collection box and vacuum cleaner of the pulverizing unit are all made of stainless steel. Meet the "GMP" requirements for pharmaceutical production.
Equipment process technology:
Technical parameters :
model | 20B-C | 30B-C | 40B-C | 60B-C |
Production capacity (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
Spindle speed (rpm) | 4500 | 3800 | 3400 | 2800 |
Feed particle size (mm) | 6 | 10 | 12 | 15 |
Finished product fineness (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
Motor power (kw) | 4 | 5.5 | 11 | 15 |
Vacuum fan (kw) | 1.5 | 1.5 | 1.5 | 2.2 |
Dimensions (length x width x height) (mm) | 1100x600x1650 | 1200x650x1650 | 1350x700x1700 | 1550x1000x1750 |
