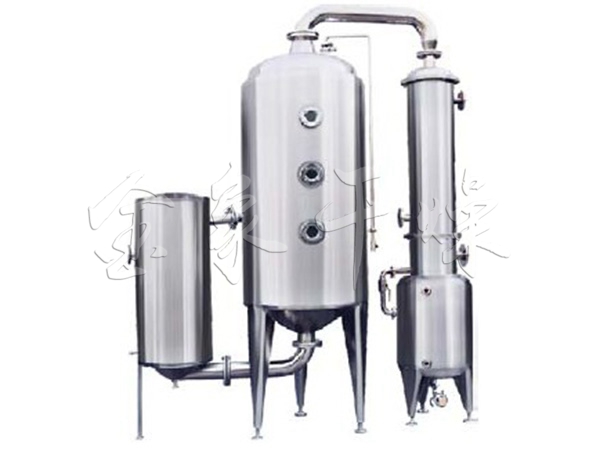

Single effect wastewater evaporator
Single effect wastewater evaporator
Detailed description
ses:
This equipment is suitable for pharmaceutical, biological, food, chemical and other industries, and is often used for evaporation of traditional Chinese medicine extracts, fruit juices, fine chemical solutions, etc.
Features:
a. Compact structure, small station area. Precision polishing inside and outside the equipment, in line with GMP requirements.
b. The equipment is mainly composed of a heater, a separator, a defoamer, a condenser and the like.
c. Vacuum decompression operation, low evaporation temperature and fast speed, and the valve configuration of each instrument is reasonable and convenient to operate.
Technical Parameters:
Parameter / Model | WZ-300 | WZ-500 | WZ-750 | WZ-1000 | WZ-2000 | WZ-3000 |
Evaporation capacity ( kg/h ) | 300 | 500 | 750 | 1000 | 2000 | 3000 |
Heating area ( m2 ) | 5.2 | 8 | 12 | 16 | 32 | 51 |
Condensation area ( m2 ) | 6 | 11 | 15 | 20 | 40 | 65 |
Steam consumption ( kg/h ) | 330 | 550 | 820 | 1100 | 2200 | 3300 |
Cooling water volume ( t / h ) | 6 | 10 | 15 | 20 | 40 | 60 |
Dimensions ( m ) | 2.5x1x3.2 | 2.7x1x3.5 | 3x1.2x3.7 | 3.2x1.2x4 | 4x1.2x4.7 | 5x1.4x5 |
